01
More usable storage
Supports evening consumption and longer backup targets with one integrated battery.
Extended Household Backup

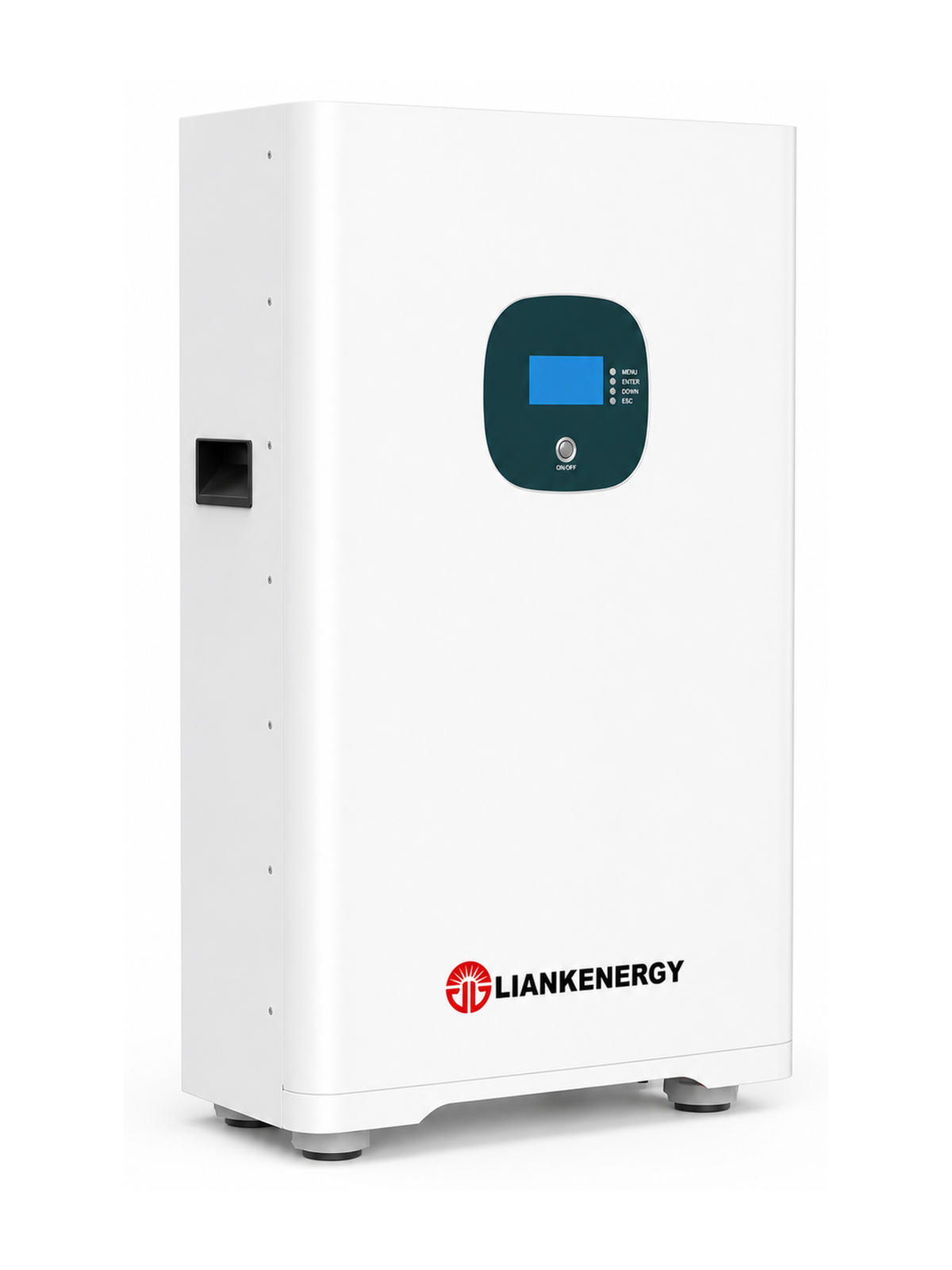

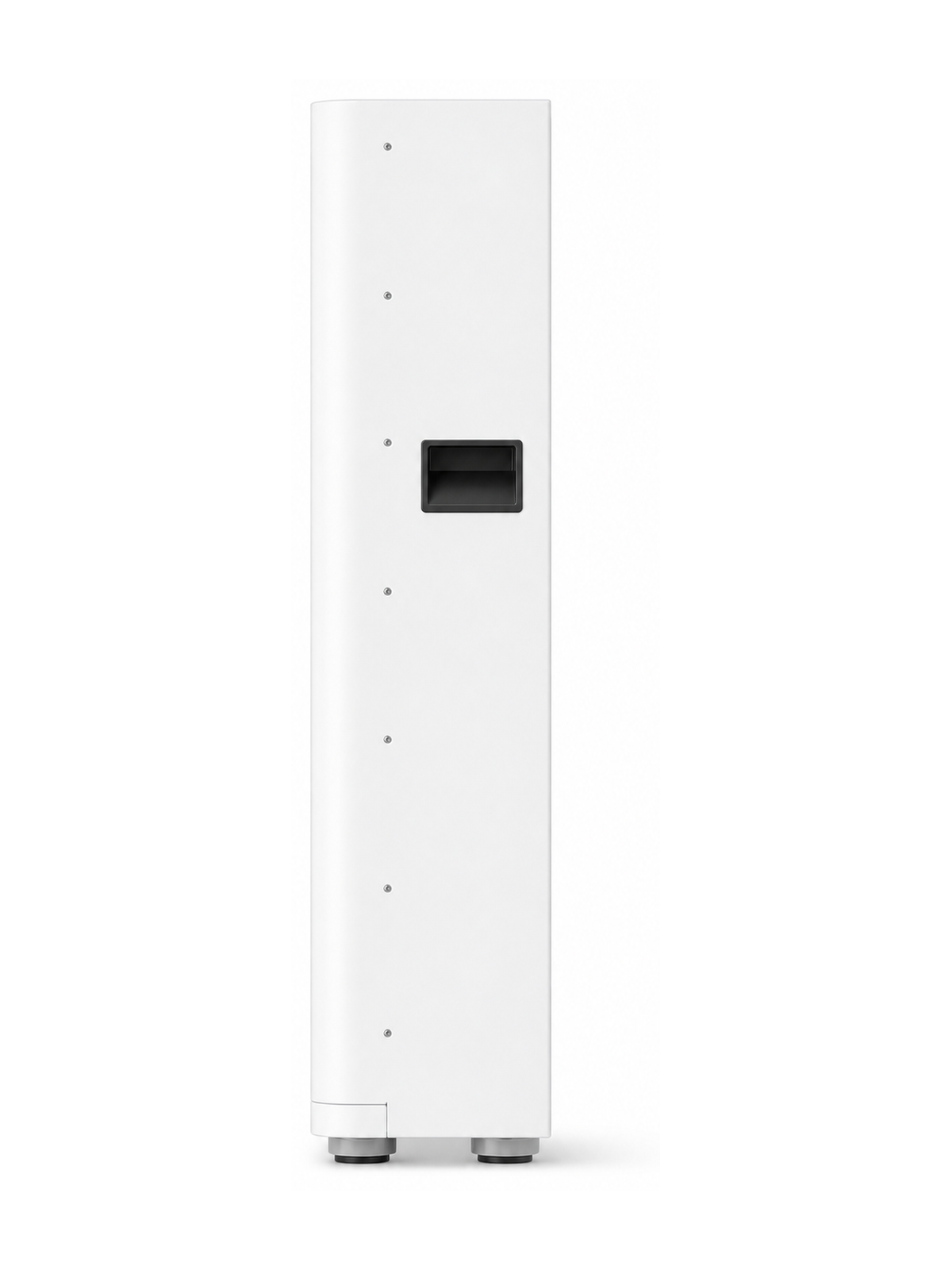

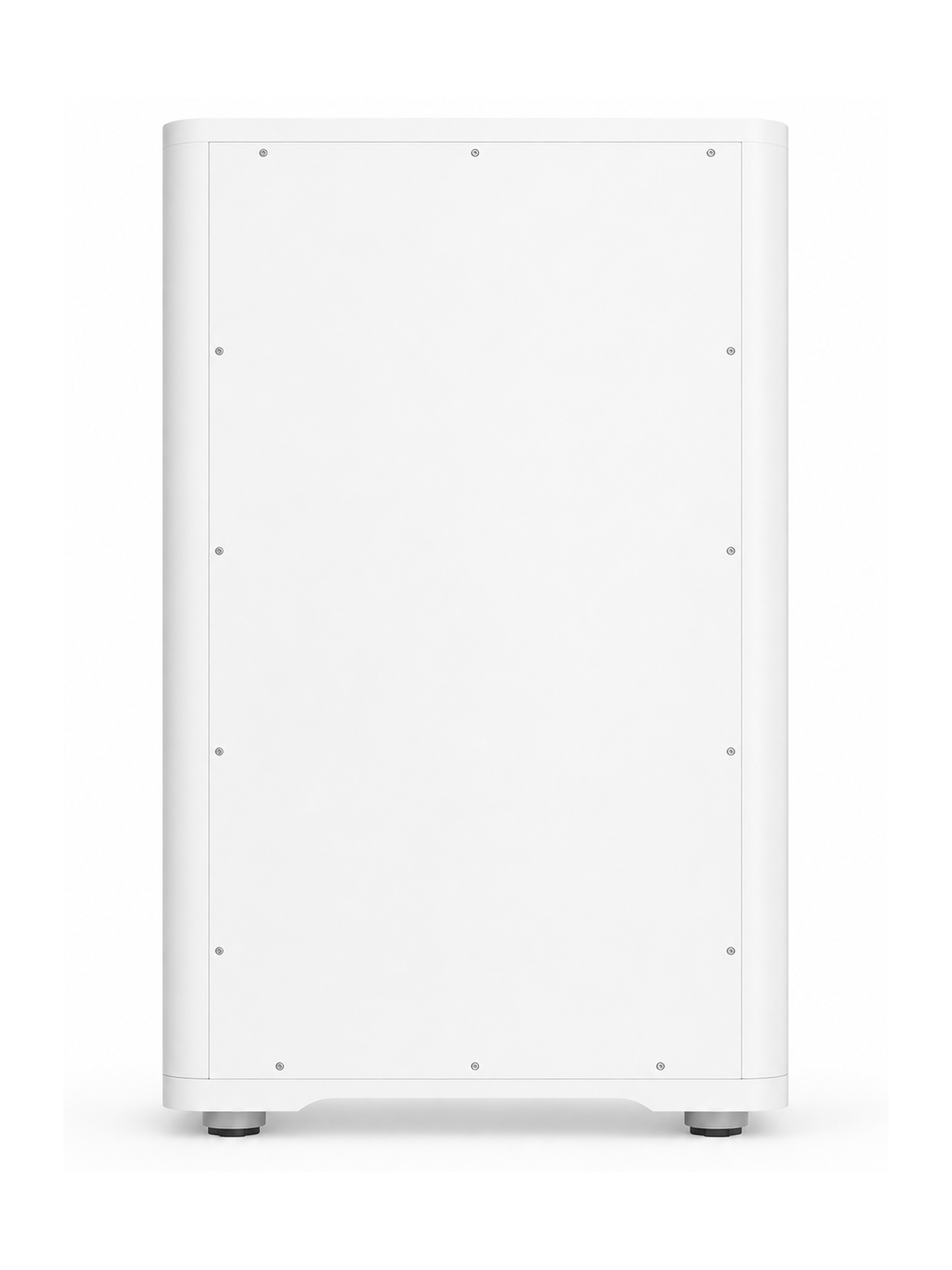

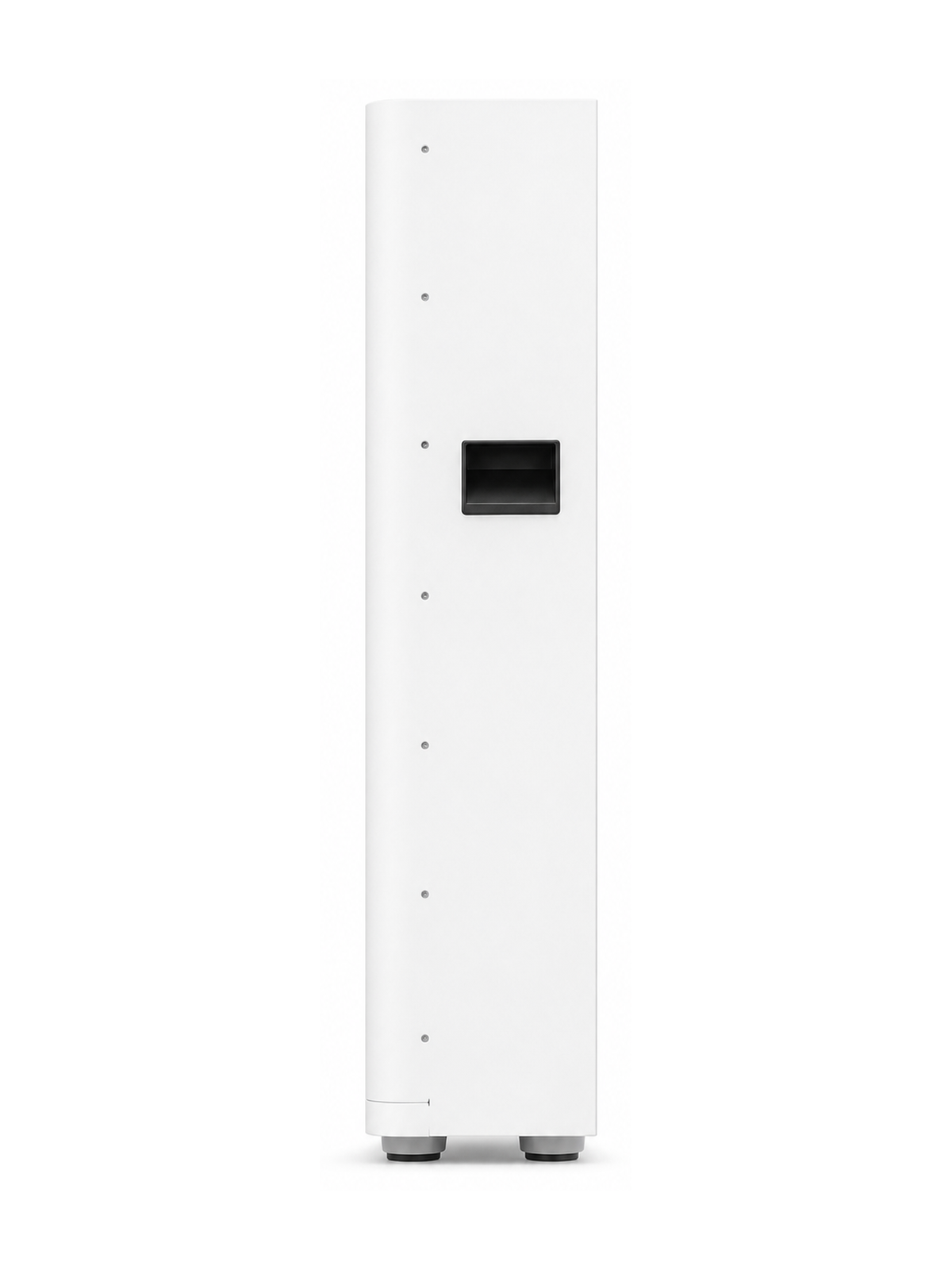

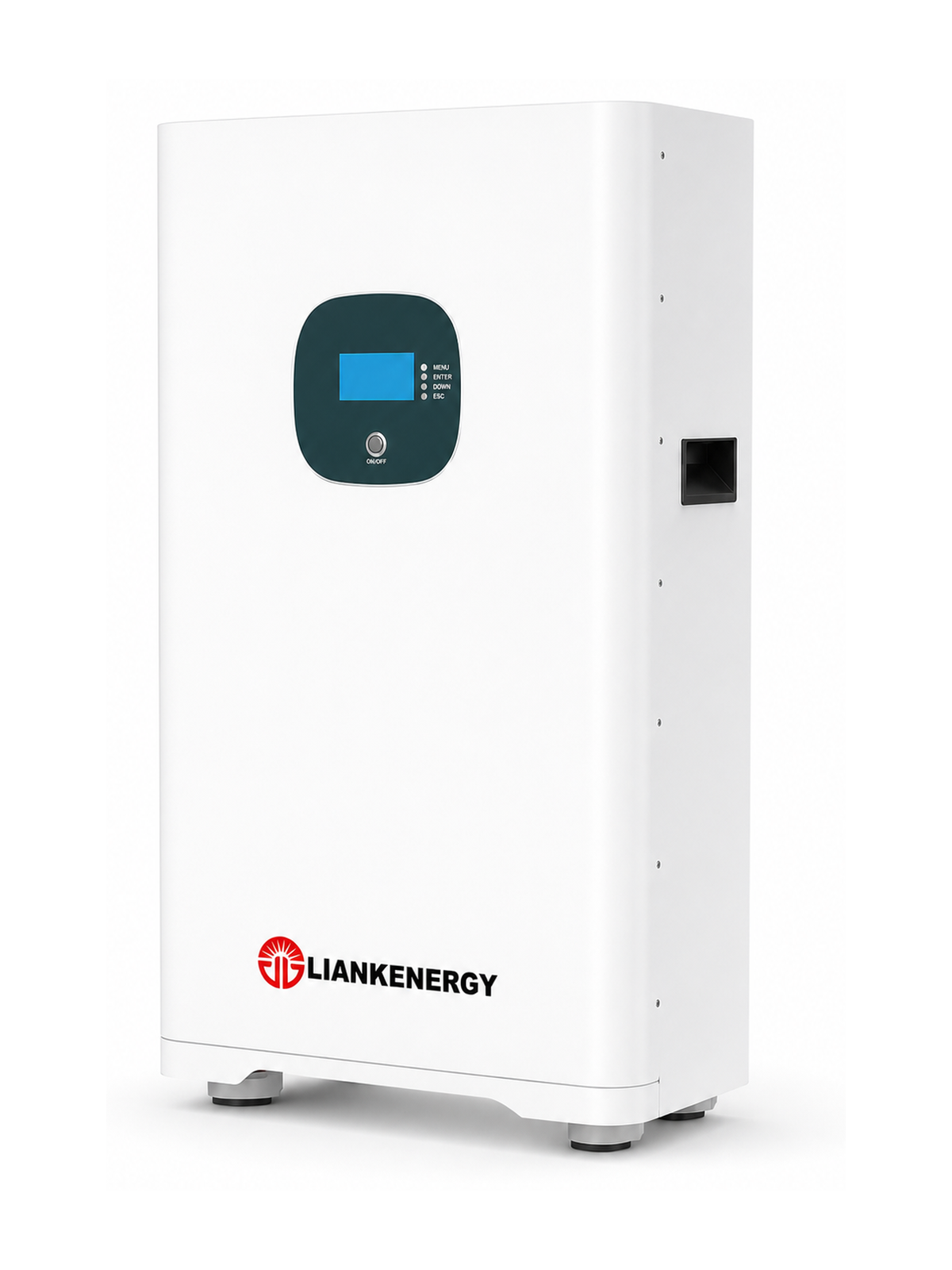

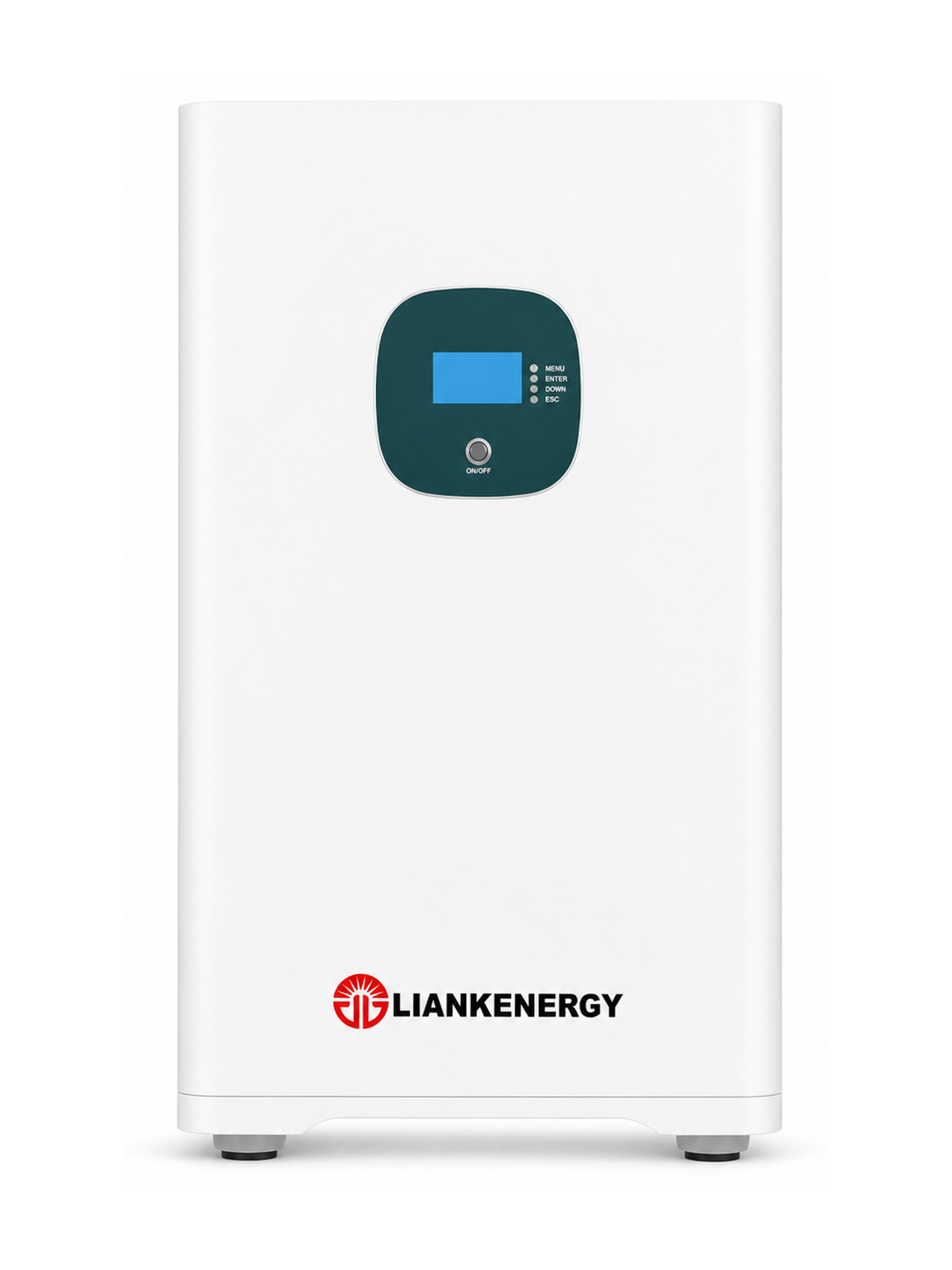

E-STONE 16.0kWh Home Battery
A higher-capacity E-STONE battery for homes with larger evening loads, longer backup targets and stronger solar self-consumption requirements.
Compare this product family
- Cell chemistry
- LFP (LiFePO4)
- Energy
- 15.97 kWh
- Nominal voltage
- 51.2 V
1 / 6Product overview
What this product is designed to do
E-STONE 16.0 is a 51.2V LiFePO4 residential battery for homes that need substantially more stored energy than a standard 5kWh unit. It is intended for longer evening use, larger protected-load groups and higher solar self-consumption.
The 15.97kWh platform can reduce the need to combine several small enclosures, but the 130kg product requires a suitable wall structure or a carefully planned floor installation. Backup capability still depends on the inverter output, transfer method and actual household load.
Choose this model when a single high-capacity residential enclosure is preferred. Choose the Pro version when IP55 protection, floor mounting and WiFi monitoring options are project priorities.
Product advantages
Advantages tied to real decisions
02
High current platform
Designed for larger residential power requirements when matched to a suitable inverter.
03
Clear expansion path
Parallel capability supports phased system growth.
Selection logic
Choose by application and system requirements
Villa solar storage
Increase use of a larger residential PV array after sunset.
Longer backup window
Provide more stored energy for a planned group of protected circuits.
High household consumption
Support homes with larger evening energy demand when matched to the right inverter.
Verified technical data
E-STONE 16.0kWh Home Battery technical specifications
Confirm the current datasheet, model scope and project conditions before specification or quotation.
| Electrical specification | E-STONE 16.0kWh Home Battery |
|---|---|
| Cell chemistry | LFP (LiFePO4) |
| Energy | 15.97 kWh |
| Nominal voltage | 51.2 V |
| Operating voltage | 45.6–56.16 V |
| Output current | 300 A / 150 A |
| BMS protection current | 310 A, 1 s |
| Communication | CAN / RS485 / RS232 |
| Cell certifications | UN38.3 / IEC 62619 / UL 1642 |
| Battery pack certifications | UN38.3 / IEC 62619 / IEC 61000 / UKCA |
| Display | SOC status display and LED indicators |
| Cycle life | 6,000 cycles @ 80% DoD, 25°C, 0.5C, 60% EOL |
| Parallel support | Up to 15 units |
| Operating modes | Grid-connected / grid-connected + standby / off-grid |
| Inverter compatibility | Major PCS brands; confirm against the compatibility list |
| Test condition | 100% DoD; charge/discharge at 0.2C and 25°C |
| Mechanical and environmental | E-STONE 16.0kWh Home Battery |
|---|---|
| Dimensions (W × D × H) | 720 × 160 × 916 mm (28.3 × 6.3 × 36.1 in) |
| Weight | 130 kg (287 lb) |
| Installation | Wall-mounted or floor-mounted |
| Ingress protection | IP20 |
| Operating temperature | −20°C to 60°C |
| Ambient humidity | ≤95% RH |
| Temperature derating | Applies from −10°C to 5°C and from 45°C to 55°C |
Compatibility and documents
Verify compatibility before ordering
- 51.2V inverter battery port
- CAN or RS485 protocol confirmation
- Inverter current and cable sizing review
Project fit
Where E-STONE 16.0kWh Home Battery fits best
Good fit
- Larger residential loads
- Longer backup windows
- High PV self-consumption
Review another format
- Lightweight walls without structural review
- Fully exposed outdoor locations
- Small backup loads that only need a compact battery
Frequently asked questions
Common questions before you choose
How long can E-STONE 16.0 provide backup?
Backup time equals usable battery energy divided by the average protected load, with conversion losses included. Send the intended loads for a project calculation.
Is wall mounting always recommended?
At 130kg, the supporting structure and installation method must be reviewed. Floor installation may be more practical for many sites.
Can it run high-power appliances?
The battery has a higher-current design, but appliance support is determined by the inverter output, surge rating and protected-load design.
Can multiple units operate together?
Yes. Up to 15 parallel units are listed, subject to inverter compatibility and coordinated protection.
Is it suitable for outdoor installation?
The brochure lists IP20. Use a protected indoor location or an engineered weatherproof enclosure.
What must be checked before ordering?
Confirm the inverter protocol, battery voltage, peak load, backup target, cable route, mounting structure and local electrical requirements.
Residential Energy StorageE-STONE 5.1kWh
Compact residential storage for solar self-use and essential-load backup.
Residential Energy StorageE-STONE Pro 16.0kWh
Alternative residential format for projects requiring added system flexibility.

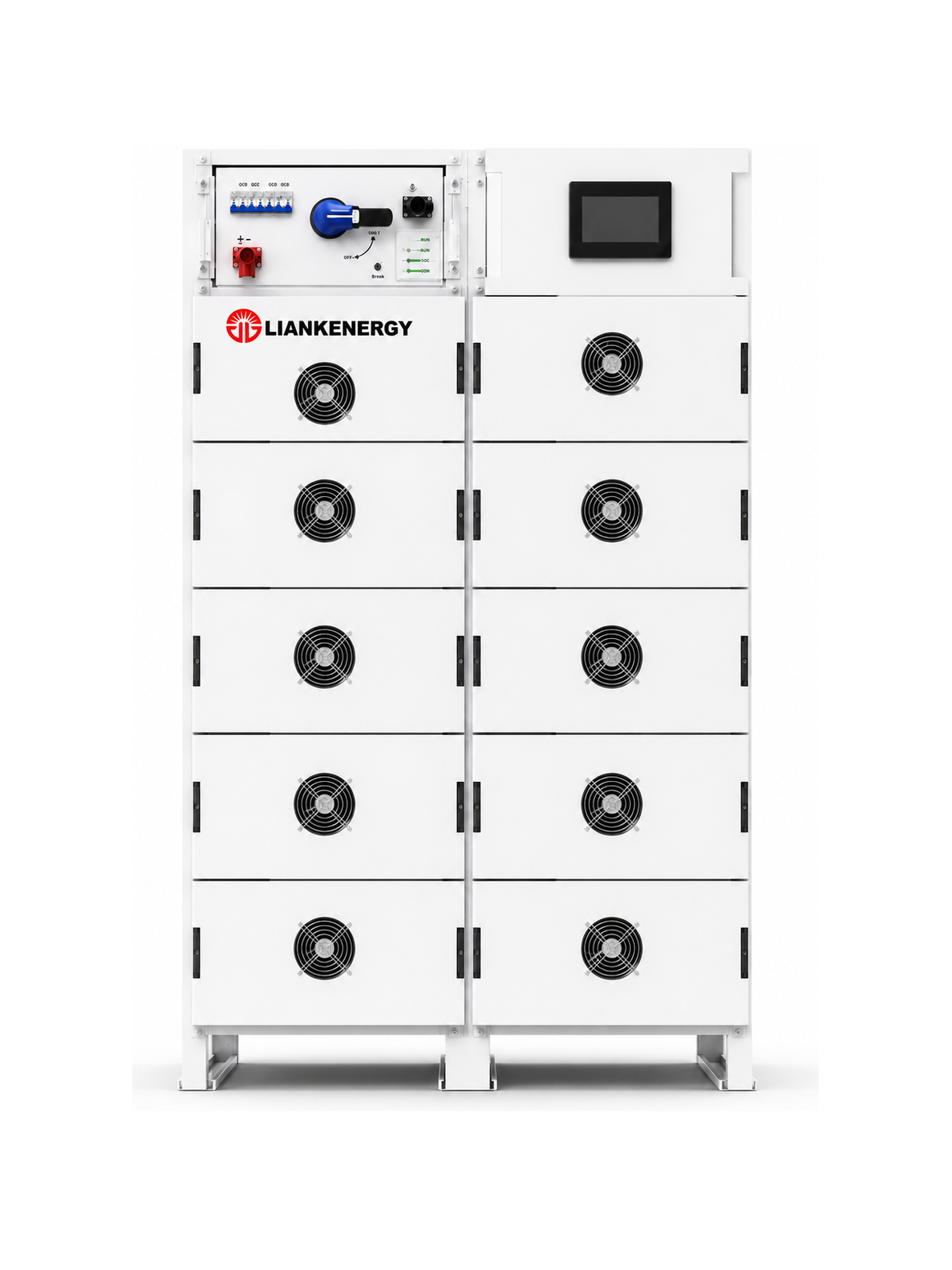

Commercial & Industrial ESSE-MATE 114R
Integrated commercial energy storage for facility and project applications.

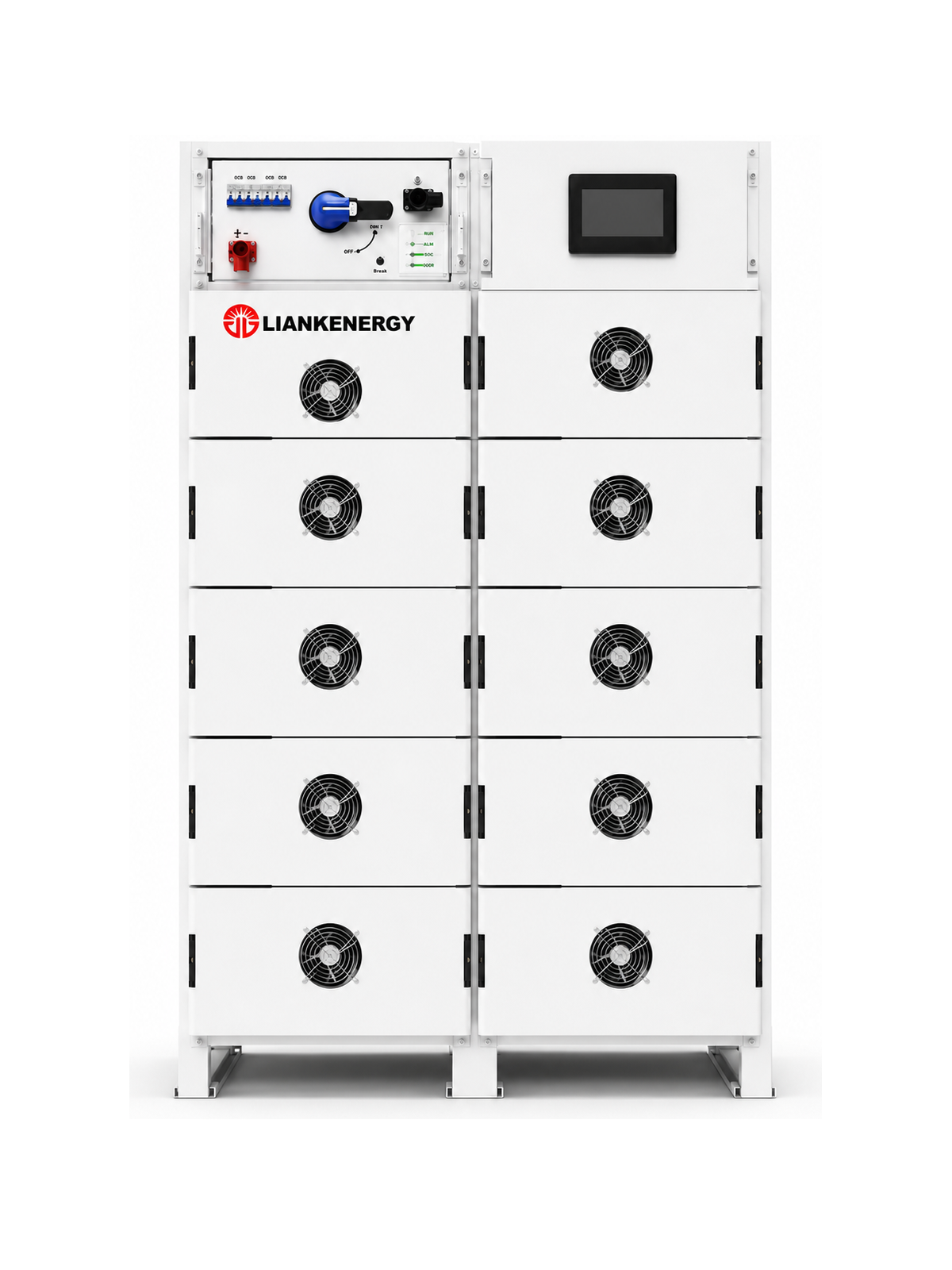

Commercial & Industrial ESSE-WALL 200R
Commercial storage platform for flexible indoor project deployment.

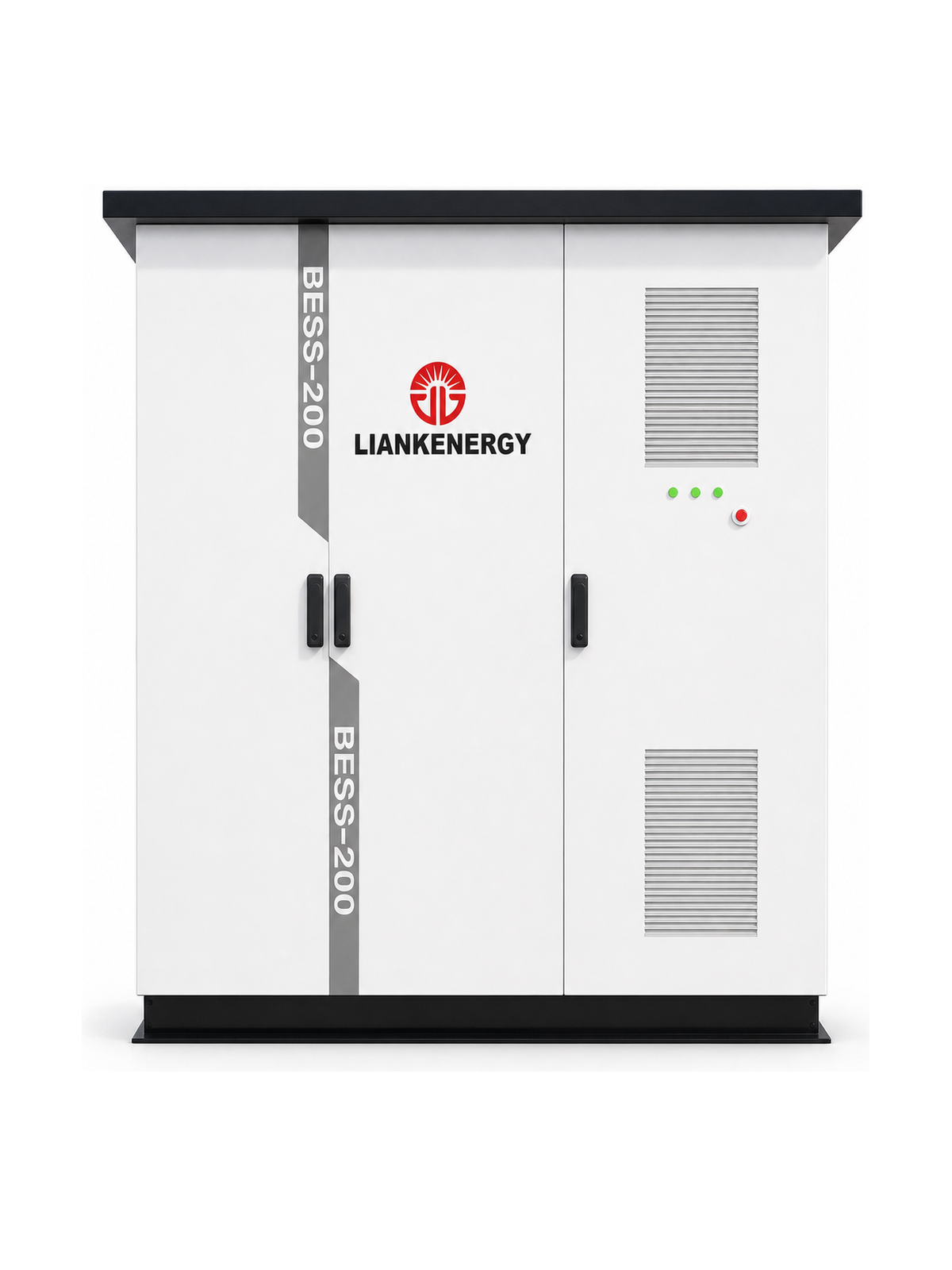

Commercial & Industrial ESSBESS 200kWh
Outdoor cabinet storage for commercial facilities and distributed projects.
Commercial & Industrial ESSBESS Plus 500GP
Project-scale storage platform for higher-capacity commercial applications.

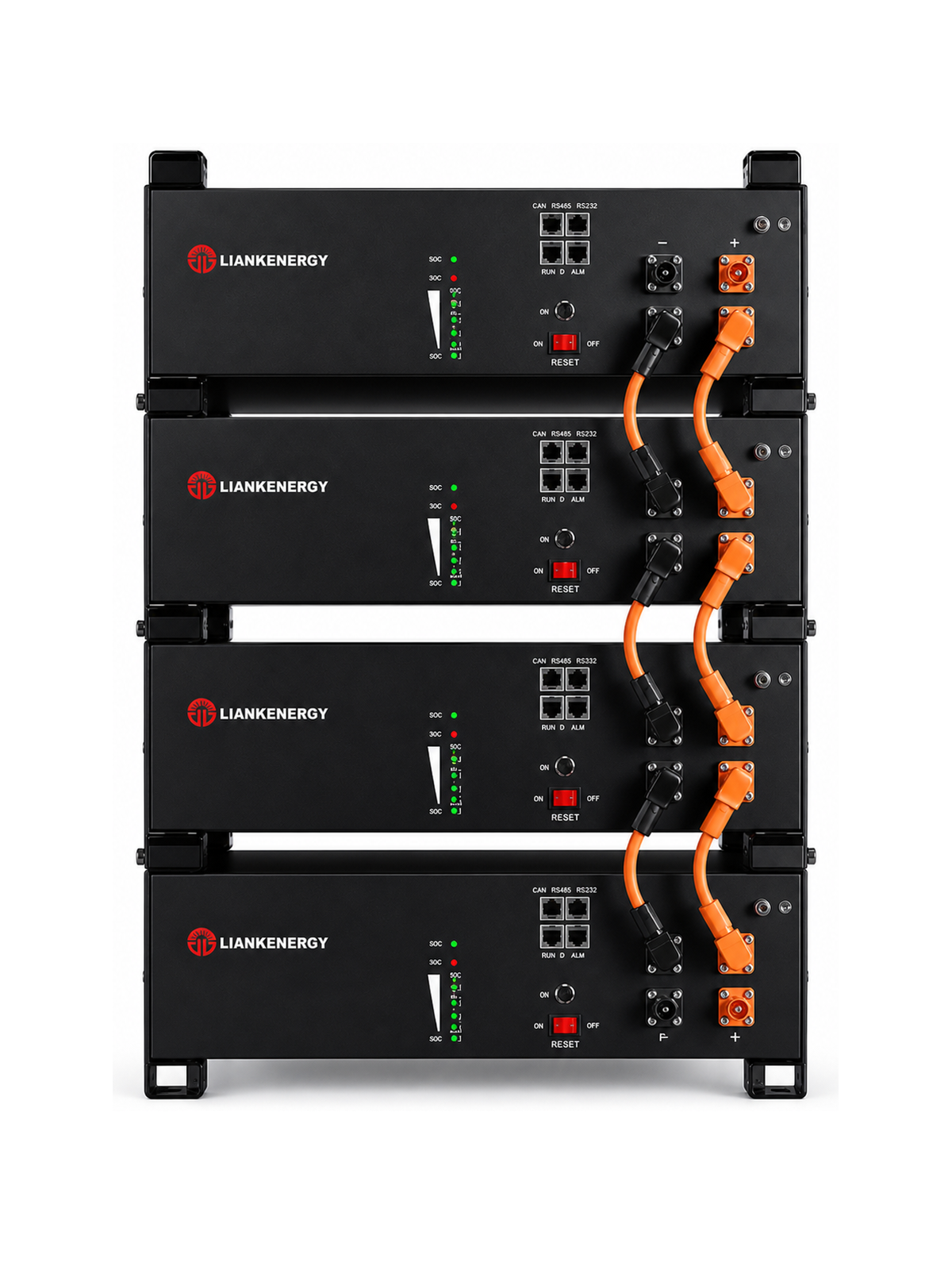

Lithium BatteriesPOWER PILE 5.12kWh
Stackable LiFePO4 battery module for scalable energy storage systems.
Lithium BatteriesPOWER PILE 16.0kWh
Expanded modular battery capacity for residential and commercial demand.

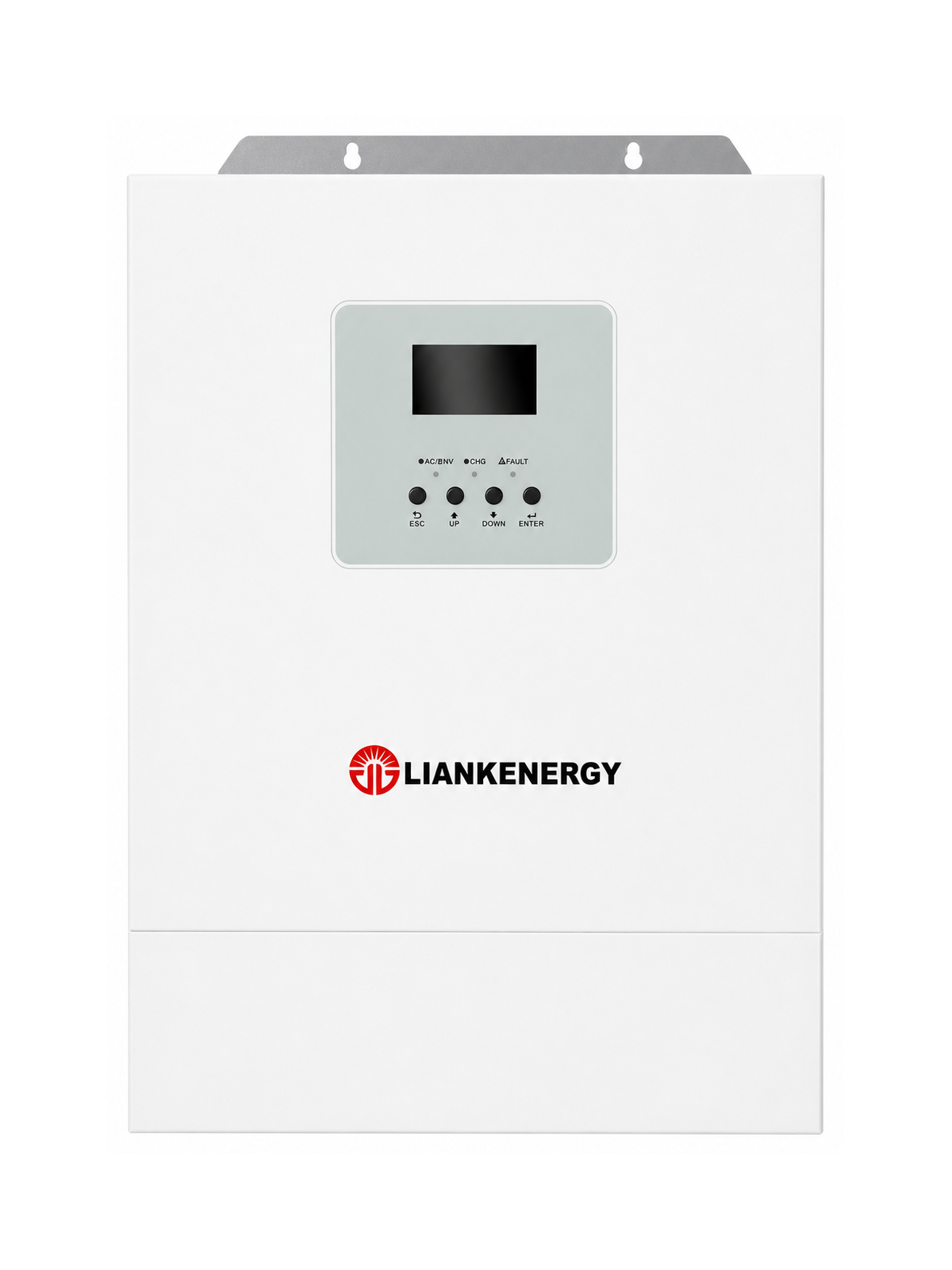

Off-Grid InvertersPV INV 6.2kW
Off-grid solar inverter for independent and backup power systems.

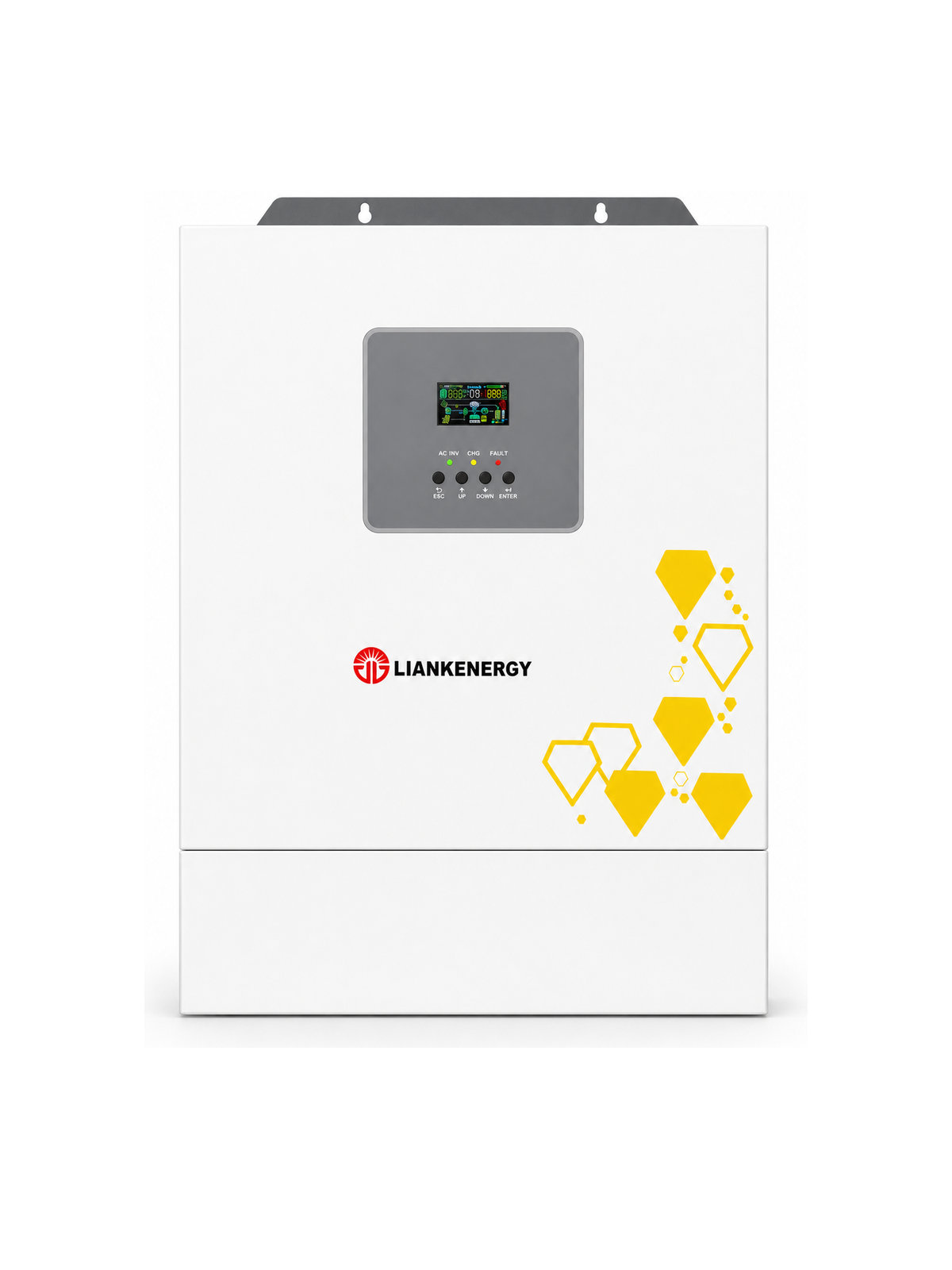

Off-Grid InvertersPV INV 11kW
